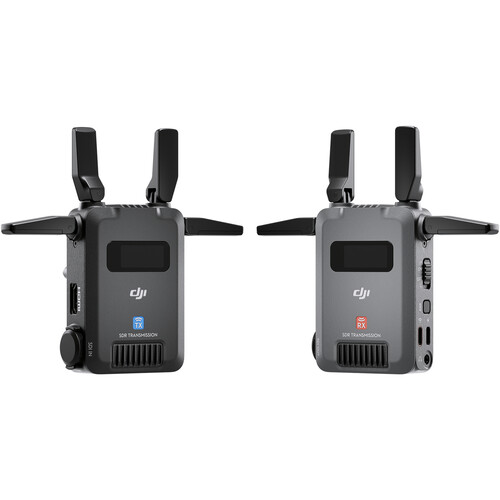

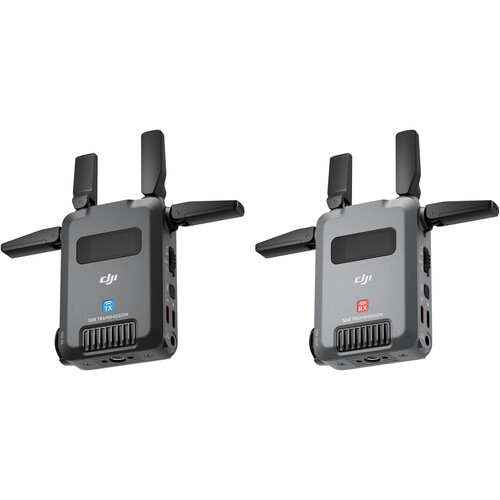

DJI SDR Transmission Combo
- Complete Wireless Video Transmission Kit
- SDR Tri-Bandwidth Technology
- Transmit up to 1080p60 Video
- DFS, 2.4 & 5.8 GHz with Auto Hopping
- Transmit to Tablet/Phone or SDR Receiver
- Wireless SDR Range of up to 1.9 Miles
- Up to 20 Mb/s Bit Rate, 35ms Low Latency
- Broadcast & Control Modes
- HDMI & 3G-SDI Video I/O
- L-Series Battery Plates, USB-C PD Inputs
₦970,000.00
Kayode / Pre-sale Questions
Need Help? Contact Us via WhatsApp
Compare
DJI SDR Transmission Combo
No delays, no interruptions
Discover the power of DJI’s stability and resistance to interference SDR transmission system. This DJI SDR Transmission Combo’s advanced technology utilizes SDR (or Software-Defined Radio) and Wi-Fi video transmission modes to help your video feed remain clear and uninterrupted.
Strong connection even from 1.8 miles away
This DJI SDR Transmission Combo is ideal for wide-area filming setups, reaching distances up to 3 kilometers or about 1.8 miles away. Even if you’re filming a fast-paced sports event, your signal will stay strong, providing a reliable connection no matter the distance.
Hop across 2.4 GHz, 5.8 GHz, and DFS
Never worry about signal interference ever again! DJI SDR Transmission Combo supports seamless auto frequency hopping across 2.4 GHz, 5.8 GHz, and DFS frequency bands. If it detects interference, it automatically switches to the optimal channel.
High bitrate and image quality
No more choppy video feeds when it comes to the DJI SDR Transmission Combo. Stream live feeds in stunning 1080p Full HD at 60 frames per second, with a high bitrate of up to 20 Mbps. Yup, that means smooth, high-quality video perfect for professional monitoring and collaboration.
Connect to multiple receivers at the same time
Broadcast Mode allows the user to connect to an unlimited number of receivers. That’s a nice feature that allows a high-quality monitoring experience in professional environments. A seamless connection is key!
Ideal for on-the-go filmmakers
The DJI SDR Transmission Combo is compact, weighing 145 grams. Each transmitter features foldable antennas for easy storage. This makes it ideal for on-the-go filmmakers who need a reliable and portable transmission solution.
Traditional battery options
For those who prefer traditional battery options, the transmitter and receiver both support industry-standard NP-F batteries, offering a voltage range from 6.8 to 8.4 V for reliable and long-lasting power. Additionally, the USB-C power supply compatibility increases your flexibility, allowing you to power the system through a standard PD protocol charger rated at 9 V and 2 A.
Ronin compatibility & remote control
The DJI SDR Transmission Combo integrates seamlessly with the DJI RS 4 Pro, DJI RS 4, and DJI RS 3 Pro gimbals. Power the transmitter directly from the gimbal and say bye to extra batteries and cables. Additionally, you can control the gimbal remotely.
USB-C compatibility
The transmitter features multiple USB-C ports for power, gimbal communication, firmware updates, and direct connections to smartphones or tablets. Monitor your video feed in real-time directly on your smart device without any additional receivers.
DJI SDR Transmission Features
-
SDI and HDMI for video, 3.5mm jack for audio, and USB-C for power and data
-
SDR: 2.4000-2.4835 GHz, 5.725-5.850 GHz, and 5.470-5.725 GHz (DFS)
-
Wi-Fi Protocol Supports 802.11b/a/g/n/ac/ax with 2×2 MIMO capability
-
Maximum Bandwidth 20 MHz for both SDR and Wi-Fi
-
Maximum Bitrate 20 Mbps for SDR and 8 Mbps for Wi-Fi
-
Power Consumption 8.2W to 8.3W
-
Power Supply: Multiple USB-C options and NP-F battery support
-
Video Formats: Supports 1080p, 1080i, and 720p across various frame rates
-
Audio Formats: SDI and HDMI embedded audio, with PCM output
-
Maximum Transmission Distance Up to 3 km for SDR and 200 m for Wi-Fi
