AVMATRIX 1×9 3G-SDI Reclocking Distribution Amplifier | SD1191

AVMATRIX 1×9 3G-SDI Reclocking Distribution Amplifier (SD1191) | 9-Port SDI Splitter

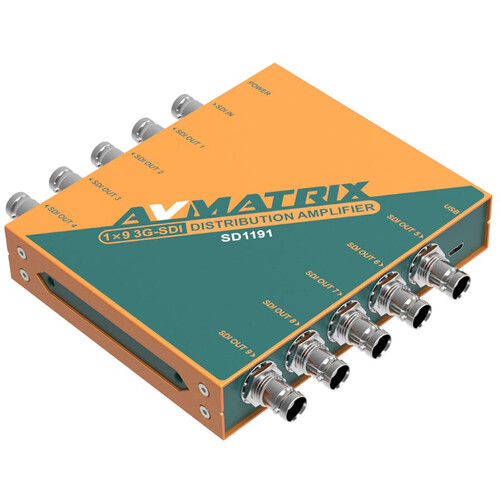

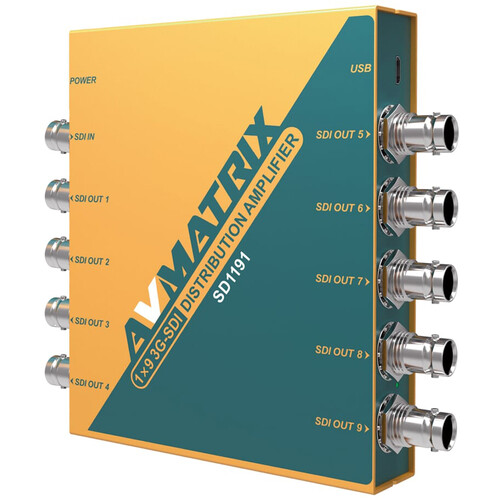

AVMATRIX 1×9 3G-SDI Reclocking Distribution Amplifier

The AVMATRIX SD1191 1×9 3G-SDI Reclocking Distribution Amplifier is a professional SDI signal distribution solution that enables you to split a single 3G-SDI, HD-SDI, or SD-SDI input into nine independent, buffered, and reclocked SDI outputs without compromising signal quality.

Designed for broadcasters, live event professionals, video production studios, churches, and AV integrators, the SD1191 automatically detects the incoming SDI signal format and regenerates the signal through advanced reclocking and cable equalisation. This minimises jitter, improves signal integrity, and supports longer cable runs, making it ideal for demanding production environments.

Its rugged all-metal housing ensures reliable operation in both studio installations and field productions, while compact dimensions allow for easy desktop or wall mounting.

Key Features

• 1 x 3G-SDI, HD-SDI, or SD-SDI input
• 9 x buffered and reclocked SDI outputs
• Supports resolutions up to 1080p60
• Automatic SDI signal detection (3G/HD/SD)
• Reclocking technology reduces jitter and regenerates SDI signals
• Automatic cable equalisation for extended transmission distances
• Supports DVB-ASI signals
• Preserves embedded audio and ancillary data
• Supports RGB 4:4:4 and YUV 4:2:2/4:4:4 (10-bit and 12-bit)
• LED indicators for power and signal lock
• Locking DC power connector for secure operation
• Compact, durable metal enclosure

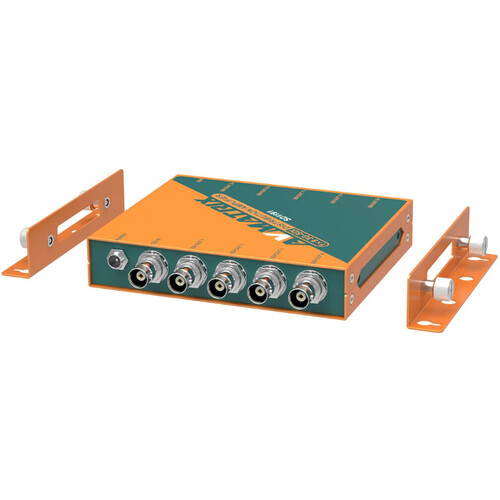

• Includes mounting ears and locking power supply

Why Choose the AVMATRIX SD1191?

Unlike passive SDI splitters, the AVMATRIX SD1191 actively buffers and reclocks every output, ensuring each connected device receives a clean and stable SDI signal. This significantly improves reliability during live broadcasts, multicamera productions, video distribution, and long cable installations.

Whether you’re feeding multiple monitors, switchers, recorders, encoders, or streaming devices, the SD1191 delivers professional-grade signal distribution with exceptional performance.

Ideal Applications

• Broadcast television
• Live event production
• Houses of worship
• Video production studios
• Live streaming
• Corporate AV systems
• Educational facilities
• Medical imaging
• Digital signage
• OB vans and control rooms

Frequently Asked Questions

What is a 3G-SDI Distribution Amplifier?

A 3G-SDI distribution amplifier splits one SDI video signal into multiple outputs while maintaining signal quality through buffering and reclocking.

How many outputs does the AVMATRIX SD1191 provide?

It accepts one SDI input and distributes the signal to nine simultaneous SDI outputs.

Does it support Full HD video?

Yes. The SD1191 supports SD, HD, and 3G-SDI video formats up to 1080p60.

What does reclocking do?

Reclocking regenerates the SDI signal, reduces jitter, and improves transmission stability over long cable runs, resulting in more reliable video performance.

Does it pass embedded audio?

Yes. Embedded SDI audio and ancillary data are preserved across all nine outputs.

Technical Specifications

• Model: SD1191
• Input: 1 × 3G/HD/SD-SDI (BNC)
• Outputs: 9 × Buffered 3G/HD/SD-SDI (BNC)
• Maximum Resolution: 1080p60
• Signal Processing: Automatic reclocking and cable equalisation
• Supported Formats: SD-SDI, HD-SDI, 3G-SDI, DVB-ASI
• Color Sampling: RGB 4:4:4, YUV 4:2:2, YUV 4:4:4
• Bit Depth: 10-bit / 12-bit
• Embedded Audio: Supported
• Indicators: Power and Signal Lock LEDs
• Housing: Metal
• Power Supply: Locking DC power adapter included

Buy the AVMATRIX 1×9 3G-SDI Reclocking Distribution Amplifier in Nigeria

Looking for a reliable 3G-SDI distribution amplifier in Nigeria? The AVMATRIX SD1191 is the ideal solution for distributing a single SDI signal to multiple professional devices while maintaining broadcast-quality performance.

Order from CameraTrader Nigeria for genuine AVMATRIX products, competitive pricing, expert support, and nationwide delivery.
