Product Description

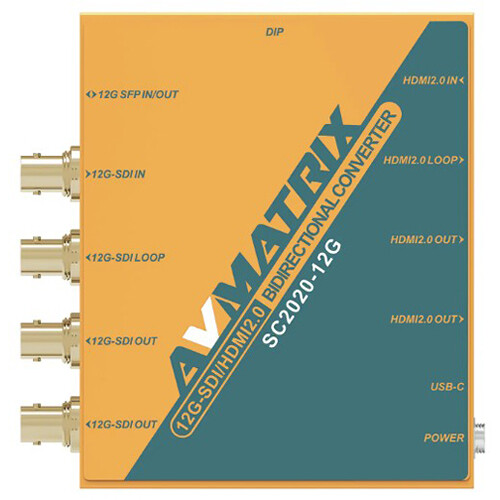

AVMATRIX 12G-SDI/HDMI 2.0 Bidirectional Converter

AVMATRIX 12G-SDI to HDMI 2.0 Bidirectional Converter | 4K60 SDI & HDMI Signal Converter

AVMATRIX 12G-SDI/HDMI 2.0 Bidirectional Converter

The AVMATRIX 12G-SDI/HDMI 2.0 Bidirectional Converter is a professional 4K video signal converter that allows seamless bidirectional conversion between 12G-SDI and HDMI 2.0. Designed for broadcasters, filmmakers, live production teams, churches, studios, and AV professionals, it delivers reliable signal conversion with support for resolutions up to 4K Ultra HD at 60Hz (4K60).

Whether you need to connect an SDI camera to an HDMI monitor or convert an HDMI source to SDI for long-distance transmission, this compact converter provides exceptional image quality, low latency, and dependable performance in demanding production environments.

Its rugged metal enclosure makes it ideal for field and studio use, while the USB-C port enables firmware updates and software control. An integrated SFP slot also allows optional fibre transmission for distances of up to 20 km (12.4 miles).

Key Features

• Bidirectional 12G-SDI ↔ HDMI 2.0 conversion
• Supports video resolutions up to 4K UHD 60p

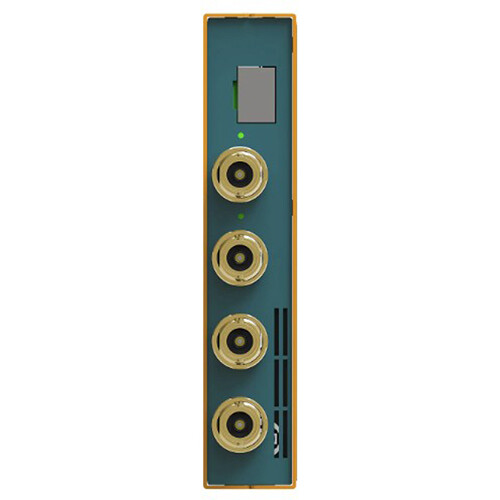

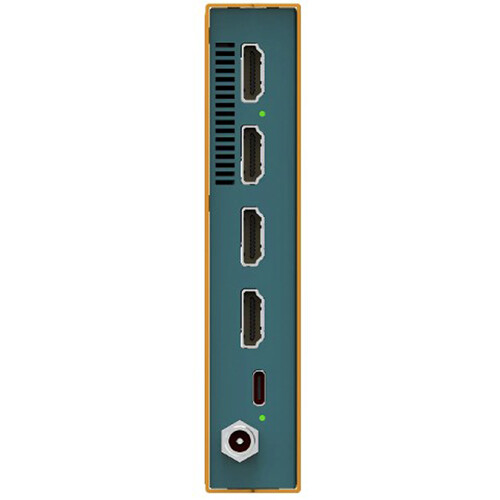

• HDMI 2.0 and 12G-SDI inputs with loop outputs
• SFP expansion slot for optional fibre transmission up to 20 km (12.4 miles)
• Supports multiple professional colour spaces:
  • Full RGB 4:4:4
  • Limited RGB 4:4:4
  • YCbCr 4:4:4
  • YCbCr 4:2:2
  • YCbCr 4:2:0
• USB-C port for firmware upgrades and software control

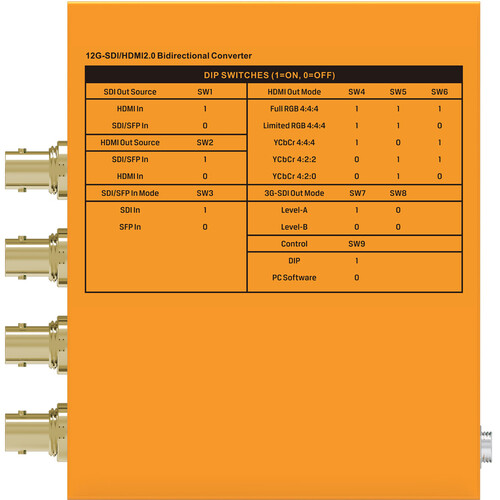

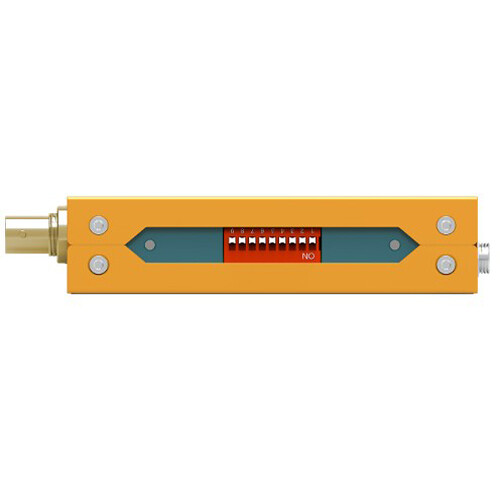

• Easy configuration via onboard DIP switches
• Durable all-metal construction
• Includes 12V DC power supply

Why Choose the AVMATRIX 12G-SDI/HDMI Converter?

The AVMATRIX 12G-SDI/HDMI 2.0 Converter is built for professional workflows where signal integrity and reliability matter. It provides flexible connectivity between SDI and HDMI equipment without compromising image quality, making it an excellent solution for live streaming, television production, video conferencing, corporate events, and broadcast facilities.

Its bidirectional design eliminates the need for separate converters, helping reduce equipment costs and simplify production setups.

Ideal Applications

• Broadcast television
• Live streaming
• Live event production
• Film and video production
• Houses of worship
• Podcast and streaming studios
• Corporate AV installations
• Educational institutions
• Healthcare and medical imaging
• Video conferencing systems

Frequently Asked Questions

What does the AVMATRIX 12G-SDI/HDMI Converter do?

It converts video signals from 12G-SDI to HDMI 2.0 or HDMI 2.0 to 12G-SDI, allowing professional SDI and HDMI equipment to work together seamlessly.

Does it support 4K?

Yes. The converter supports resolutions up to 4K Ultra HD at 60 frames per second (4K60).

Can it be used for live streaming?

Yes. It is ideal for live streaming, broadcasting, multicamera productions, and professional video workflows where SDI and HDMI devices need to be connected.

Does it support long-distance transmission?

Yes. When used with an optional compatible SFP fibre module, it supports fibre transmission of up to 20 km (12.4 miles).

Is it compatible with professional cameras?

Yes. It works with professional cameras, switchers, recorders, monitors, and other equipment that use 12G-SDI or HDMI 2.0 connections.

Technical Specifications

• Conversion: 12G-SDI ↔ HDMI 2.0 (Bidirectional)
• Maximum Resolution: 4K UHD 60Hz
• Video Formats: SD, HD, 3G, 6G and 12G-SDI
• HDMI Standard: HDMI 2.0
• Color Space Support: RGB 4:4:4, YCbCr 4:4:4, 4:2:2 and 4:2:0
• Control: USB-C software control and DIP switches
• Expansion: SFP Fibre Module Slot
• Power Input: 12V DC
• Housing: Metal

Buy the AVMATRIX 12G-SDI/HDMI 2.0 Bidirectional Converter in Nigeria

Looking for a reliable 12G-SDI to HDMI converter in Nigeria? The AVMATRIX 12G-SDI/HDMI 2.0 Bidirectional Converter is available from CameraTrader Nigeria, your trusted source for professional cameras, video production equipment, broadcast accessories, and content creation gear.

Order today for genuine products, competitive pricing, and nationwide delivery.
